4x Elbows and 4x Sleeves for Desktop Printers

Four (4) sets of Elbow-Sleeve Pair for CISS (Continuous Ink Supply Systems).
Includes 4x Elbows and 4x Sleeves
Use with 1.4 - 1.8 mm ID tubing (most desktop printer). The tube side connection is size C2. The larger side is C3
Super Durable and Flexible

Sleeve:

• OD: 4 mm (after elbow insert: 4.5 mm)
• ID: 2mm
• Length: 6 mm

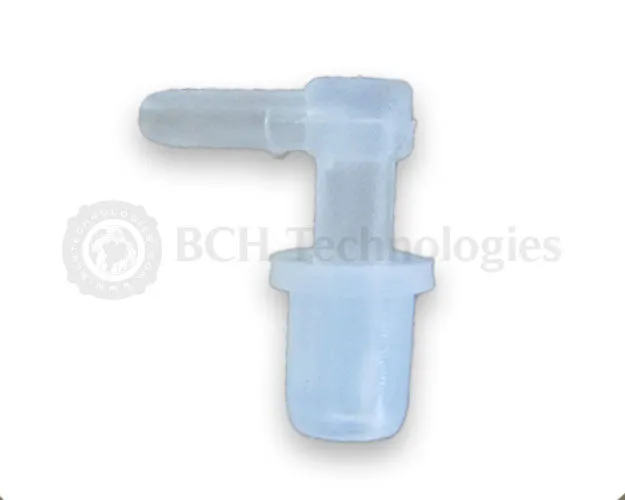

Elbow:

• Sleeve connection(straight):
  • OD: 2.8 mm
  • ID: 1.4 mm
  • Length: 8 mm
• Tube connection (gradual)
  • OD: 1.8 to 2.3 mm
  • ID: 1 mm
  • Length: 6 mm
