9-Port 10/100Mbps Desktop Switch with 8-Port PoE

• 9x 10/100 Mbps RJ45 ports
• 8x PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**

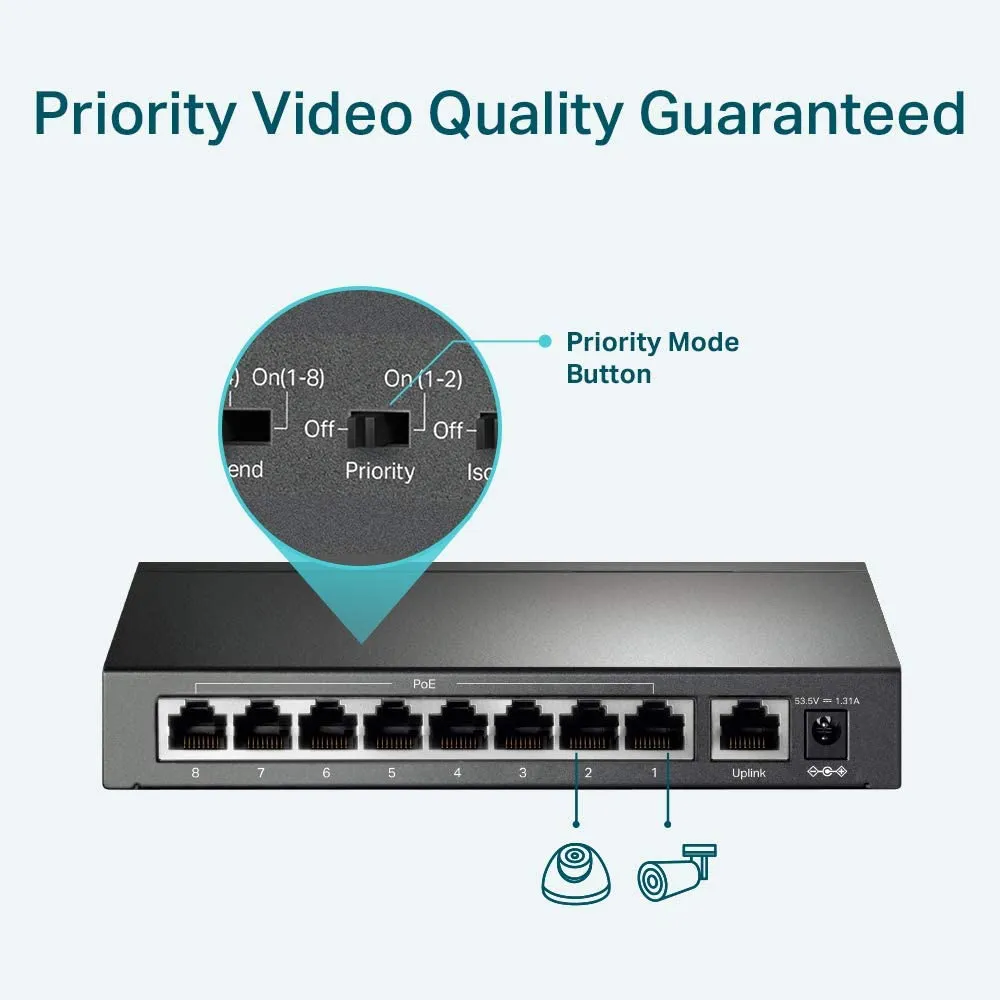

• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

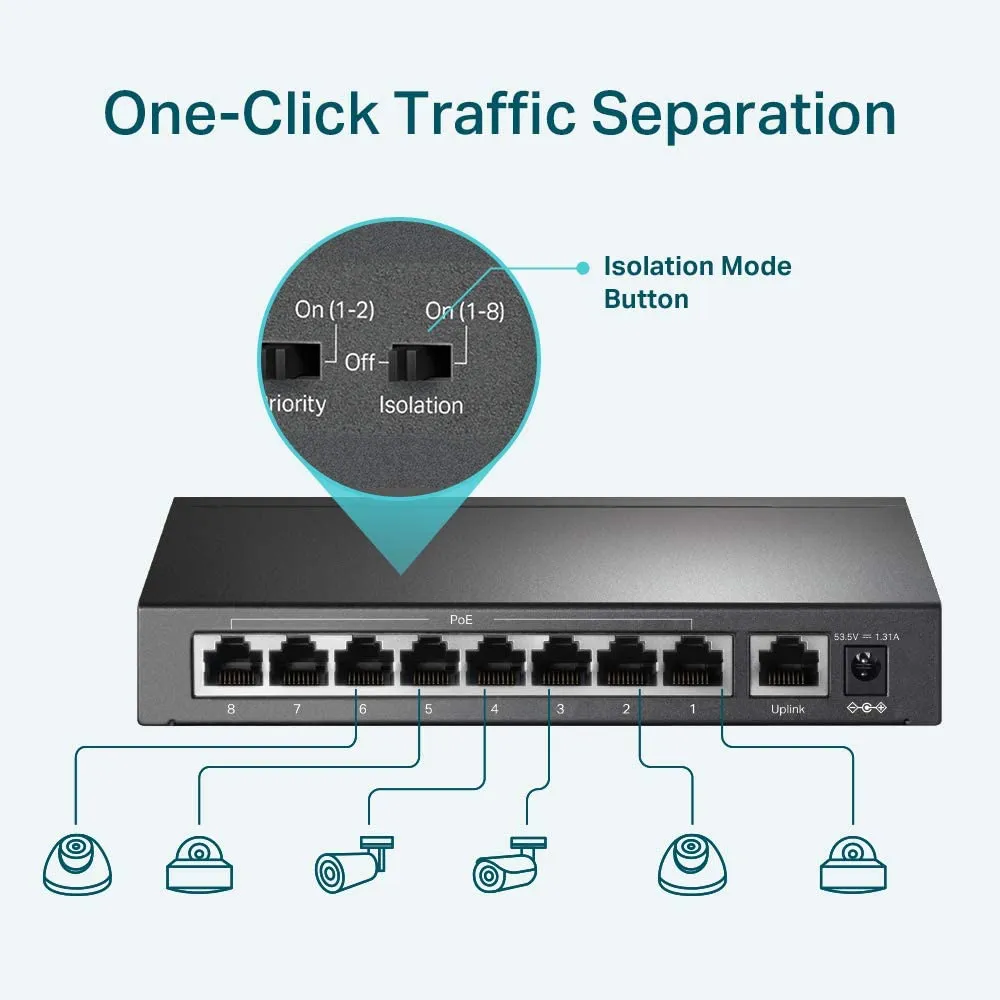

• Isolation Mode allows one-click client traffic separation for higher security and performance

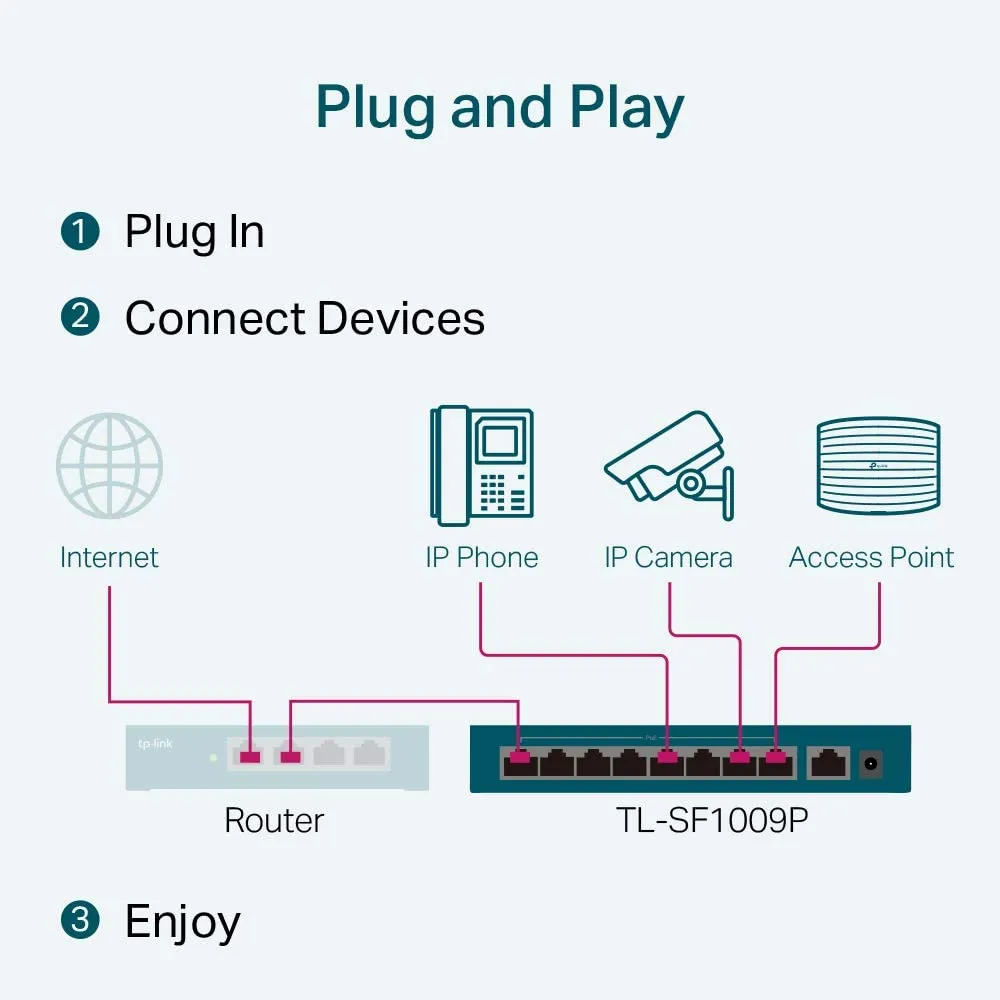

• Plug and play with no configuration required

Professional 9-Port Switch with 8-Port PoE (65 W Budget) for Numerous Applications

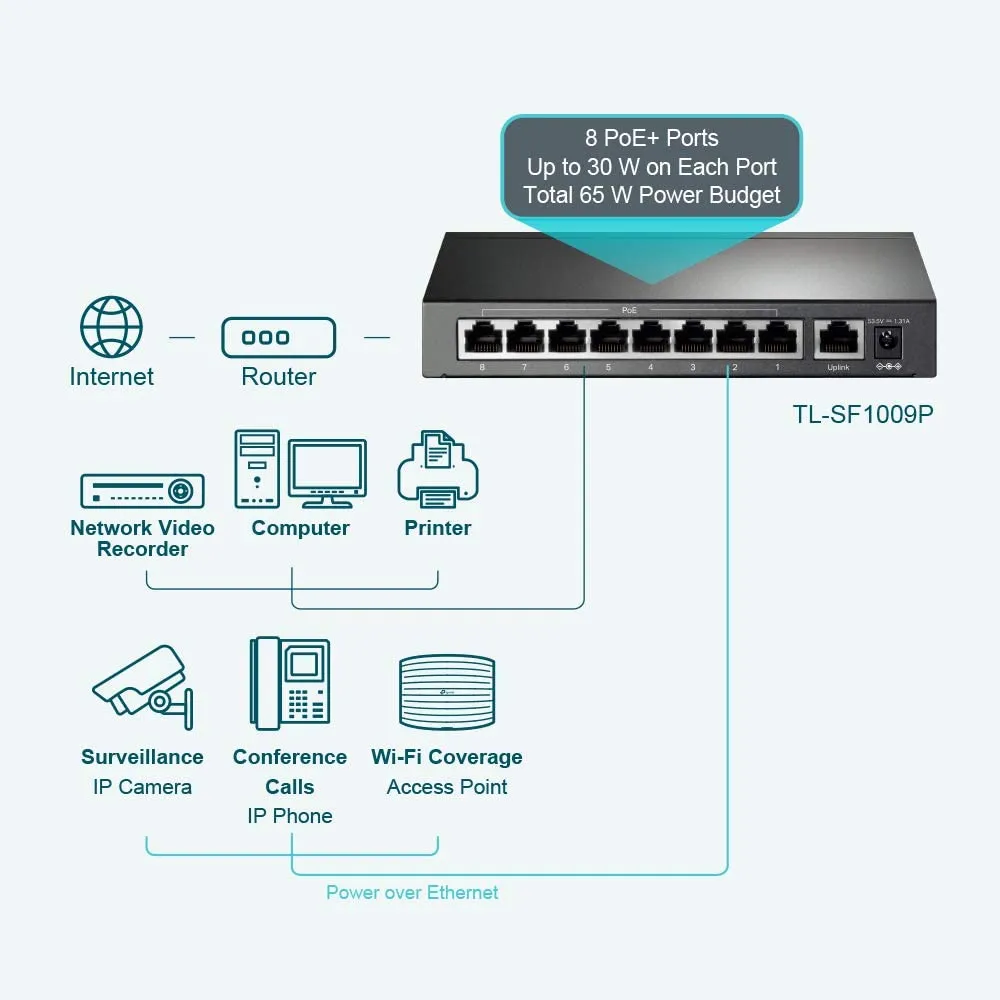

Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Specifications

Rackmountable: No

Managed: No

Number of Ports: 9RJ45 Data Transfer Rate10/100 Mbps

Interface(s)
9 x 10/100 Mbps RJ45 (8x 802.3af/at PoE )
AUTO Negotiation
AUTO MDI/MDIX

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8
Power Supply: 65 W

Switching Capacity: 1.8 Gbps

Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)

Dimensions: 171 x 98 x 27 mm

Transfer Method: Store-And-Forward

Mac Address Table: 2K

Packet Forwarding Rate: 1.3392 Mpps

Jumbo Frame: 2 KB

Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Priority Mode Button (Ports 1–2)
Isolation Mode Button (Ports 1–8)
Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission

Security: Physical Security Lock

Environment
Operating Temperature: 0–40C (32–104F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents
TL-SF1009P
Power Adapter
Installation Guide
